F200 Dedicated Solenoid Common Rail Injector Tester – Electromagnetic Driver, AHE Lift & Inductance Analyzer

Product Overview & Professional Diagnostic Scope

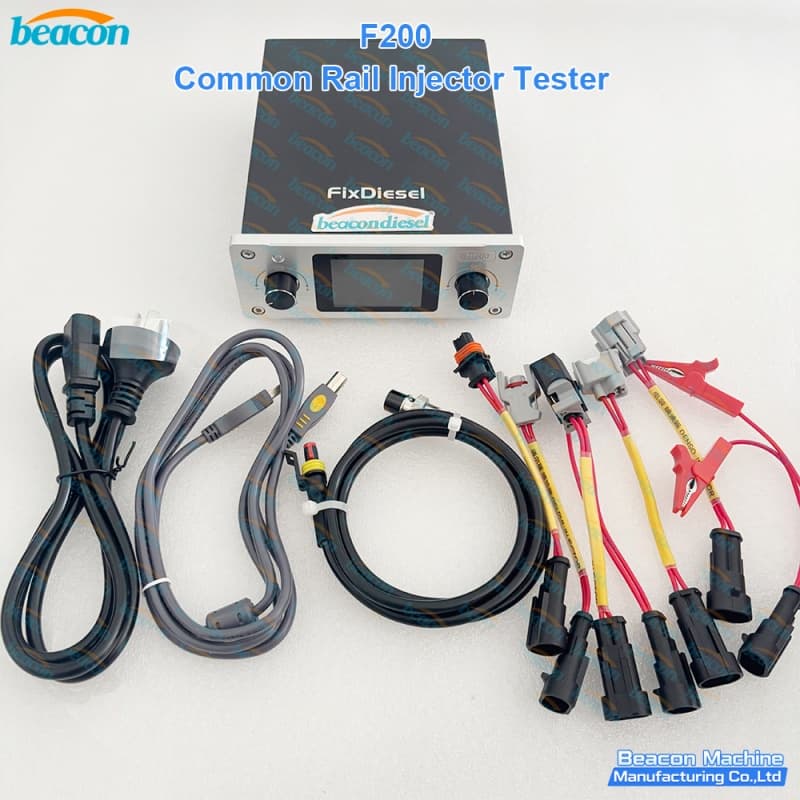

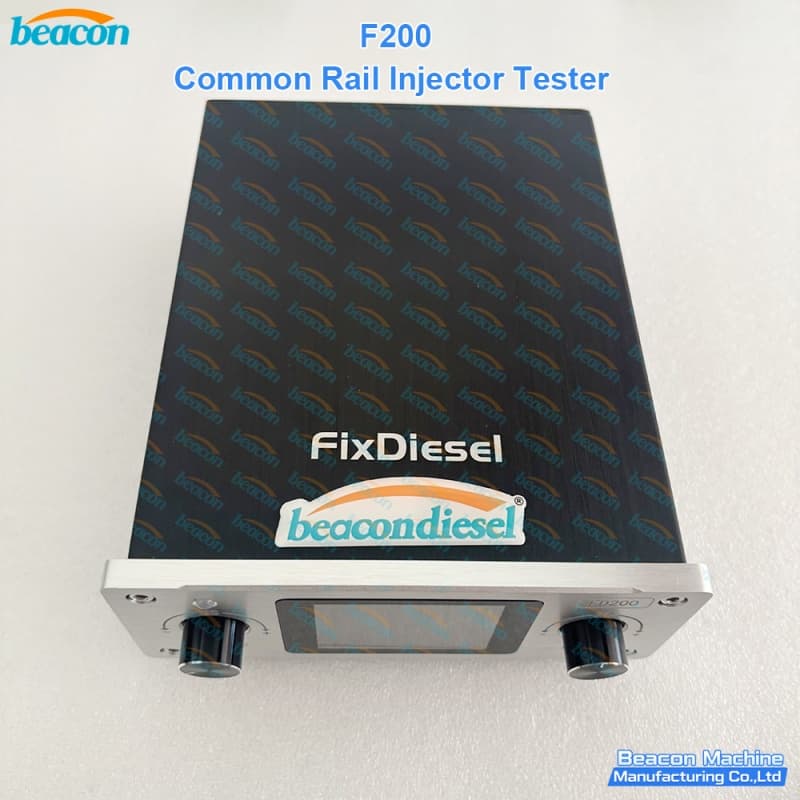

The F200 Common Rail Injector Tester (engineered under the FixDiesel FD200 series) by BEACON MACHINE is a specialized, ultra-compact 3kg diagnostic instrument built exclusively for testing, driving, and calibrating all modern electromagnetic solenoid fuel injectors. Unlike bulky conventional test benches, the F200 delivers lab-level electrical signal simulation and parameter validation directly to the technician's workbench or alongside manual nozzle pop testers (S60H, S80H, EPS100).

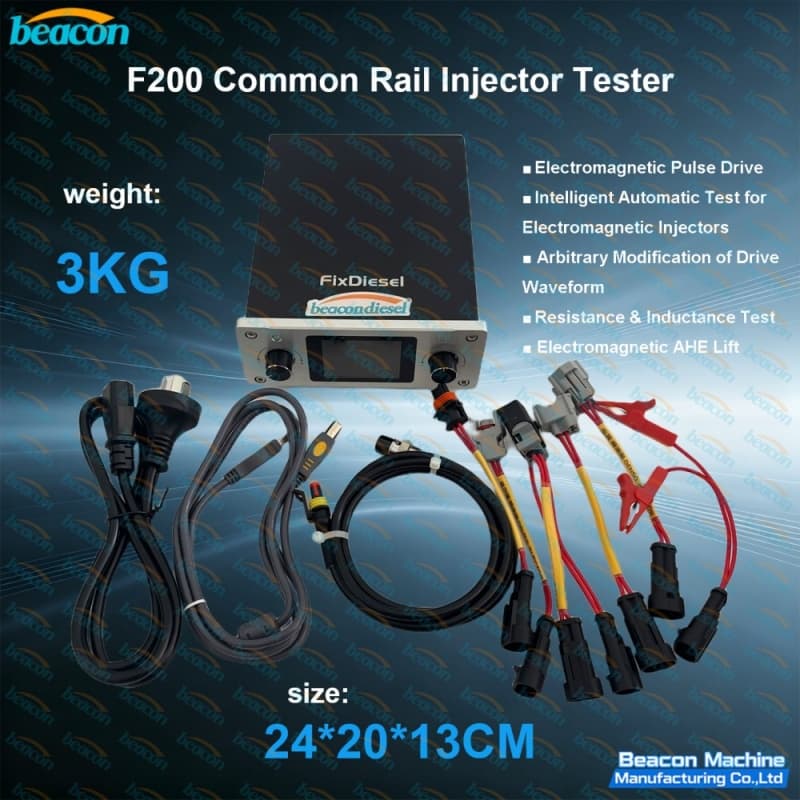

Engineered specifically for solenoid-driven architectures, the F200 integrates advanced hardware features: Electromagnetic Pulse Drive, Intelligent Automatic Test routines, Arbitrary Modification of Drive Waveform (customizable Peak, Hold, and current drop slopes), precision Resistance (Ω) and Inductance (mH) measurement, and dynamic Electromagnetic AHE Lift testing. This provides deep diagnostic clarity into both the electrical health of the coil and the mechanical response of the internal armature assembly.

The F200 provides complete diagnostic coverage for industry-leading electromagnetic diesel injectors: Bosch (CRI 1.0, 2.0, 2.2, CRIN 1, CRIN 2, CRIN 3; Part numbers: 0445110376, 0445120236, 0445120123, 0445120007), Delphi (Euro 3, 4, 5, 6, DFI 1.2, 1.3, 1.4, 1.5; Part numbers: 28231014, 28229873), and Denso (G2, G3, G4; Part numbers: 095000-5050, 095000-6353, 23670-0E020). It is widely utilized across commercial haulers, agricultural tractors, and heavy construction equipment: Cummins (ISF 2.8, ISF 3.8, 6BT, QSB 6.7, ISLe), Caterpillar (C4.4, C6.6, C7.1), Weichai (WP10, WP12), Yuchai, Komatsu (PC200, PC300), Shacman, FAW, HOWO, Ford Transit TDCi, and Toyota Hilux / Prado 1KD/2KD. The F200 rapidly diagnoses and corrects severe diesel engine malfunctions: unstable engine idle, violent cylinder knocking, difficult cold starts, sudden power loss under torque, excessive black/grey exhaust smoke, and ECU trouble codes (P0201, P0202, P0203, P0204) caused by shorted solenoid windings, burned stator coils, or sluggish armature movement.

Technical & Service Advantages of BEACON MACHINE F200

• ✔            Dedicated Solenoid Peak-and-Hold Drive Architecture:            Built specifically for electromagnetic injectors, delivering optimized high-current peak firing to quickly open the valve, followed by a precise lower hold current. This mimics genuine engine ECU driving profiles without overheating or damaging delicate coil windings.

• ✔            Precise Coil Resistance & Inductance Measurement:            Features built-in RLC diagnostic testing circuits that directly display coil resistance in Ohms (Ω) and inductance in millihenries (mH). Allows technicians to instantly catch inter-turn short circuits and insulation degradation before reassembling the injector.

• ✔            Dynamic Electromagnetic AHE Armature Lift Evaluation:            Supports magnetic AHE stroke analysis, enabling precise inspection of armature plate response times and physical travel clearance, which is critical for restoring factory-matched fuel delivery across all cylinders.

• ✔            Arbitrary Drive Waveform Customization & Auto Test:            Includes pre-programmed automated testing sequences alongside manual arbitrary waveform shaping (frequency, pulse width, multi-injection simulation), giving diesel specialists full flexibility during advanced calibration procedures.

• ✔            Official BEACON MACHINE Factory Warranty & Global Support:            Backed by a 12-month comprehensive manufacturer warranty, a full set of heavy-duty shielded harness adapters (Bosch, Delphi, Denso), English technical documentation, and direct technical service support for diesel workshops worldwide.
